LIGHTNING Universal Dual Battery System - Auxiliary Power Battery Box + 120AH AGM Battery + Quick Connect Wiring Kit (LP-DBSUK120-QC)

Previous Product | Next Product
Product Description
$788.00
'Click 'Add To Cart' for Shipping Calculator'
Maximum quantity available reached.
Sku: LP-DBSUK120-QC
Product Description



Description:

The Lightning Universal Dual Battery System is a quick connect setup designed for easy installation. This kit includes everything needed to Do It Yourself or alternatively will cut the cost of getting a professional to install it if required.

This purpose built quick connect setup is designed as a portable or fixed dual battery system including a 120Ah Deepcycle AGM Battery + Auxiliary Power Box with Multiple style accessory outlets + Universal vehicle wiring kit for charging.

Please Note: This System does not include a battery isolator device.



Auxiliary Power Box

The Lightning Auxiliary Power Battery Box has been designed as an 'All In One' power station that not only keeps your battery physically protected, it also supplies fast and easy portable power through the quick connect accessory outlets built into the box.

Power Features:

  • Master switch to control digital voltmeter and dual USB socket
  • Digital voltmeter with blue display to monitor battery voltage
  • Dual USB outlet (4.2A) with blue LED surround
  • 2 x Anderson Style Connectors for Auxiliary output / input
  • 2 x Accessory Sockets (cig sockets) for power appliances
  • 1 x Engel Fridge Socket (2 pin)
  • 50A Automatic reset circuit breaker for Anderson connector protection
  • 30A Automatic reset circuit breaker for Accessory socket protection
  • Easy-fit Positve & Negative leads to connect to the battery terminals (10mm ring terminal)

Battery Box Features:

  • Fit's up to 120AH battery sizes
  • Hold down strap and mounts included
  • Fit's majority of new orbital or spiral celled, deep cycle, high performance batteries
  • Convenient battery box application guide
  • Safe and secure
  • Convenient, fast, durable
  • Use hold-down holes molded in to reinforced handles
  • Use J-hooks, L-hooks, threaded rod or lag bolts
  • Remove the lid while keeping the box secure
  • Impact resistant to -30°F (-34°C)
  • Heat stable to +200°F (+93°C)
  • Impervious to acid, gasoline, oil and solvents
  • Will not rust, UV protected



Specifications:

Inside Dimensions:  L - 33cm  W - 18.5cm  H - 25.5cm

Outside Dimensions:  L - 42cm  W - 24.5cm  H - 28cm



Included:

  • 1 x Lightning Large Battery Box
  • 1 x Lightning Mounting Strap and Mounts
  • 1 x Master switch with blue LED
  • 1 x Digital voltmeter with blue display
  • 1 x Dual USB outlet (4.2A) with blue LED surround
  • 2 x Anderson Style Connectors
  • 2 x Accessory Sockets (cig sockets)
  • 1 x Engel Socket
  • 1 x 50A Automatic reset circuit breaker
  • 1 x 30A Automatic reset circuit breaker

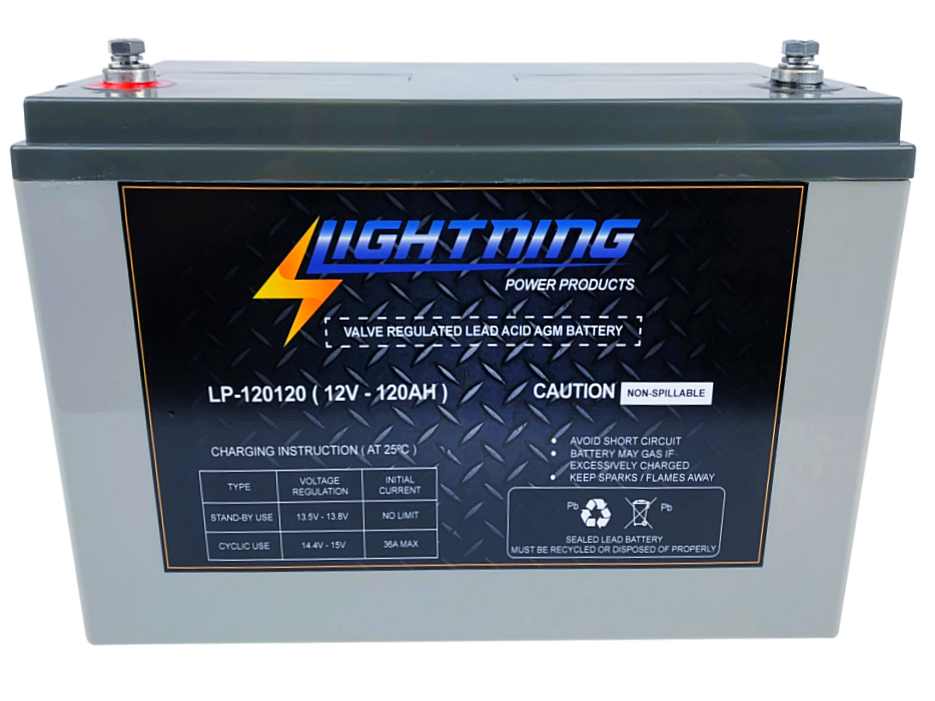

    LIGHTNING - 120AH Deep Cycle AGM Battery

    Features:

    • 120AH Deep Cycle Capacity
    • Sealed and Maintenance-Free
    • Fully compliant with Sealed Battery Requirements for most applications
    • Excellent CCA and cranking ability
    • Competitively Priced and proven in today's market industry
    • Multi-Purpose Uses
    • High Discharge Rate
    • Long Shelf Life (Keep on an Automatic Charger if stored)

    .

    Specifications:

    .

     LIGHTNING Deep Cycle AGM Battery Specifications



    Quick Connect Design Wiring Kit

    The quick connect design uses easy fit anderson style connectors to connect the wiring harness together conveniently. It also provides the ability to add inline components (Isolation and charging devices) to enhance and the dual battery systems performance.

    The system is protected with via the purpose built Maxi Fuse Harness which simply connects to the start battery terminals and then to the main harness through the anderson style connector.

    The main harness cable comes pre-crimped each end with anderson terminals and 6 meters of heavy duty 8 B&S twin core cable to prevent voltage drop. The wiring kit also comes with spare anderson crimp terminals in-case harness shortening is required.

    The LIGHTNING Quick Connect wiring kit is ideal for the following purpose:

    • Auxiliary battery Systems (with additional inline devices)
    • Wiring and installing Anderson connectors on the tow bar
    • Wiring to battery systems in the cargo area of the vehicle
    • DC-DC Charger Installation
    • VSR's Installation
    • LIGHTNING Battery Boxes and Power Packs



    This Premium Quick Connect kit includes:

    6 x meters of  heavy duty 8 B&S Cable - (pre-crimped with Anderson connector terminals​ on each end)
    1 x Lightning Maxifuse Cable with 80A Maxifuse pre-installed
    1 x 80Amp spare Maxifuse

    2 x Spare 50 Amp Anderson style connector shells
    4 x 50 Amp spare Anderson terminals
    15 x Black cable ties (300mm)
    4 x Yellow ring crimp terminals (2x10mm / 2x8mm) (for optional installation of a VSR)



    Specifications

    Main Cable 6M of Twin Sheathed 8B&S (7.71mm2) - With Pre-Crimped Anderson Connectors
    Circuit Protection 1 x 50 Amp Maxifuse - Holder Included
    Battery Connection Terminals 2 x 8mm Ring Terminals on Maxifuse Cable
    High Current Connector 5 x 50 Amp Anderson Connector - Outlet
    Spares 2 x 8mm Yellow Ring Terminals (Double Crimp)
    2 x 10mm Yellow Ring Terminals (Double Crimp)
    1 x  50 Maxifuse
    Fastening 15 x 100MM UV Enhanced Cable Ties
